Series One

Google Meet room kits

PEOPLE-FIRST MEETINGS

Made exclusively for Google Meet — in partnership with Lenovo — Series One meeting room kits continue to deliver on our commitment to innovative and immersive meeting experiences that help people feel like they’re working together, not just meeting together.

Key Features

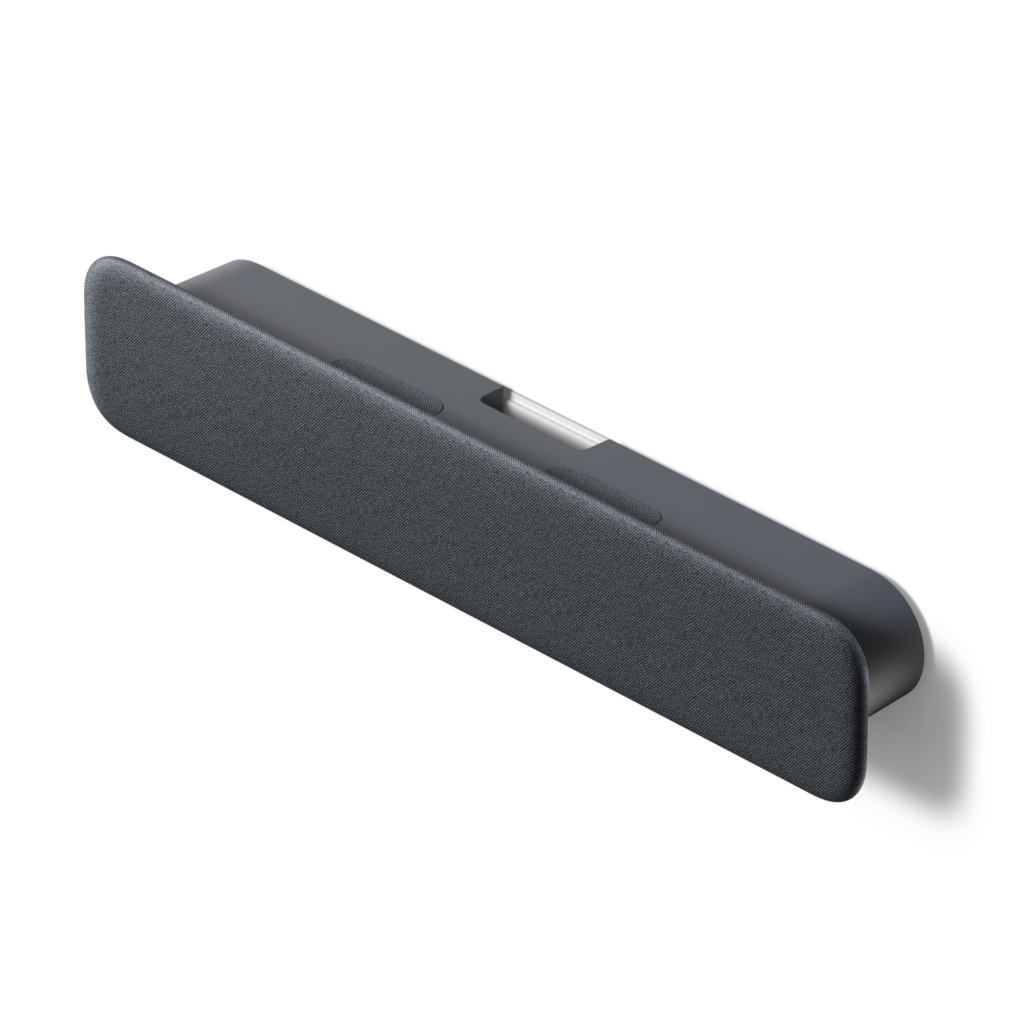

Audio Acumen

Remove unwanted sounds and crystallize human voices for a balanced, high fidelity experience.

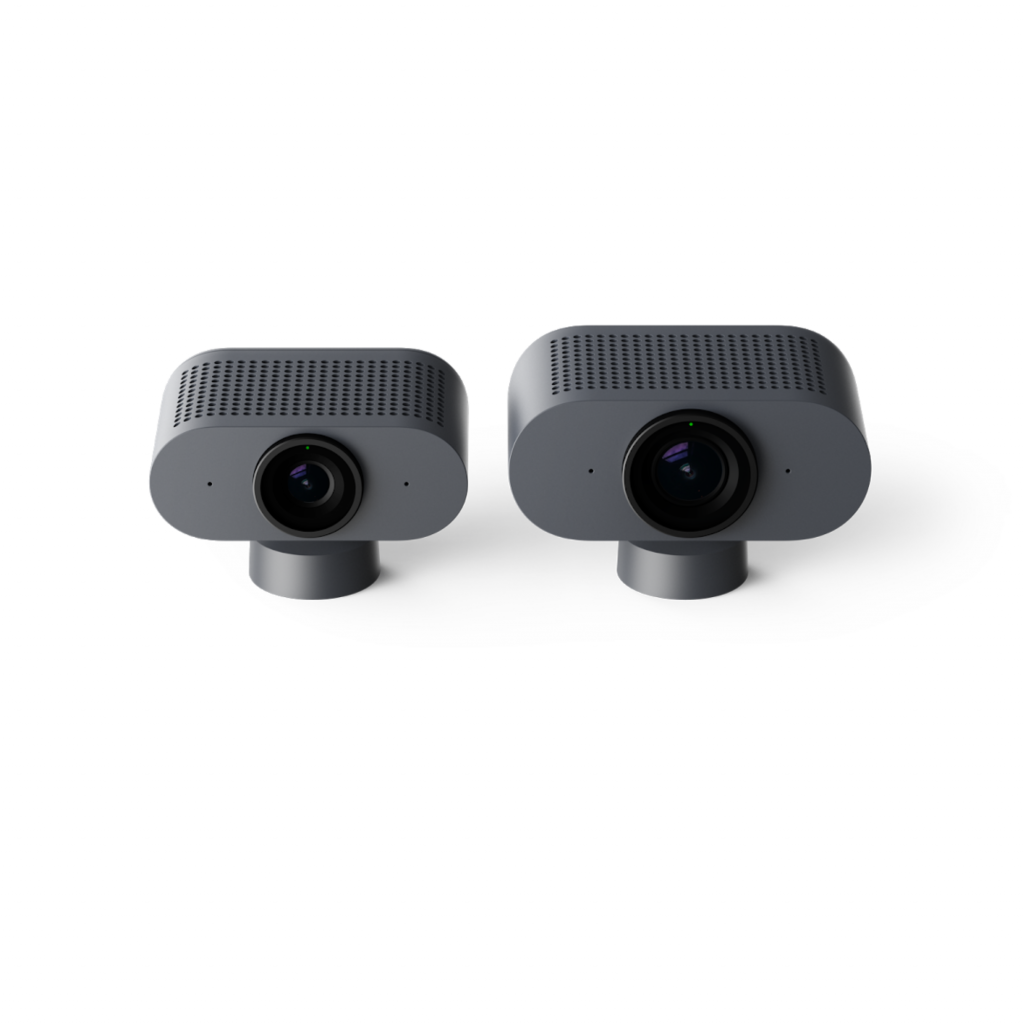

People Perfect

A true 4K camera with a large image sensor provides PTZ (pan, tilt, zoom) effects digitally so participants are framed clearly.

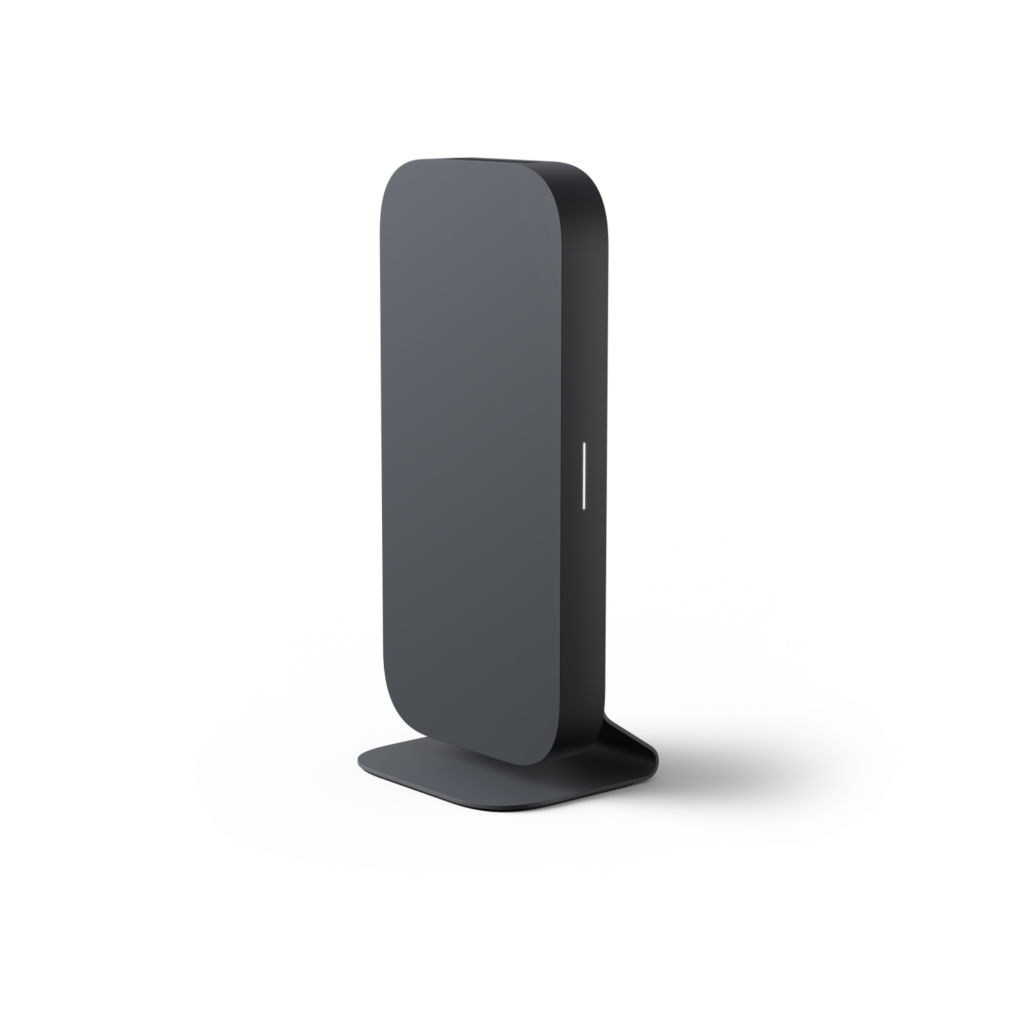

Complete Compute

Made to handle the taxing demands of video conferencing along with running the latest in Google AI as efficiently and reliably as possible.

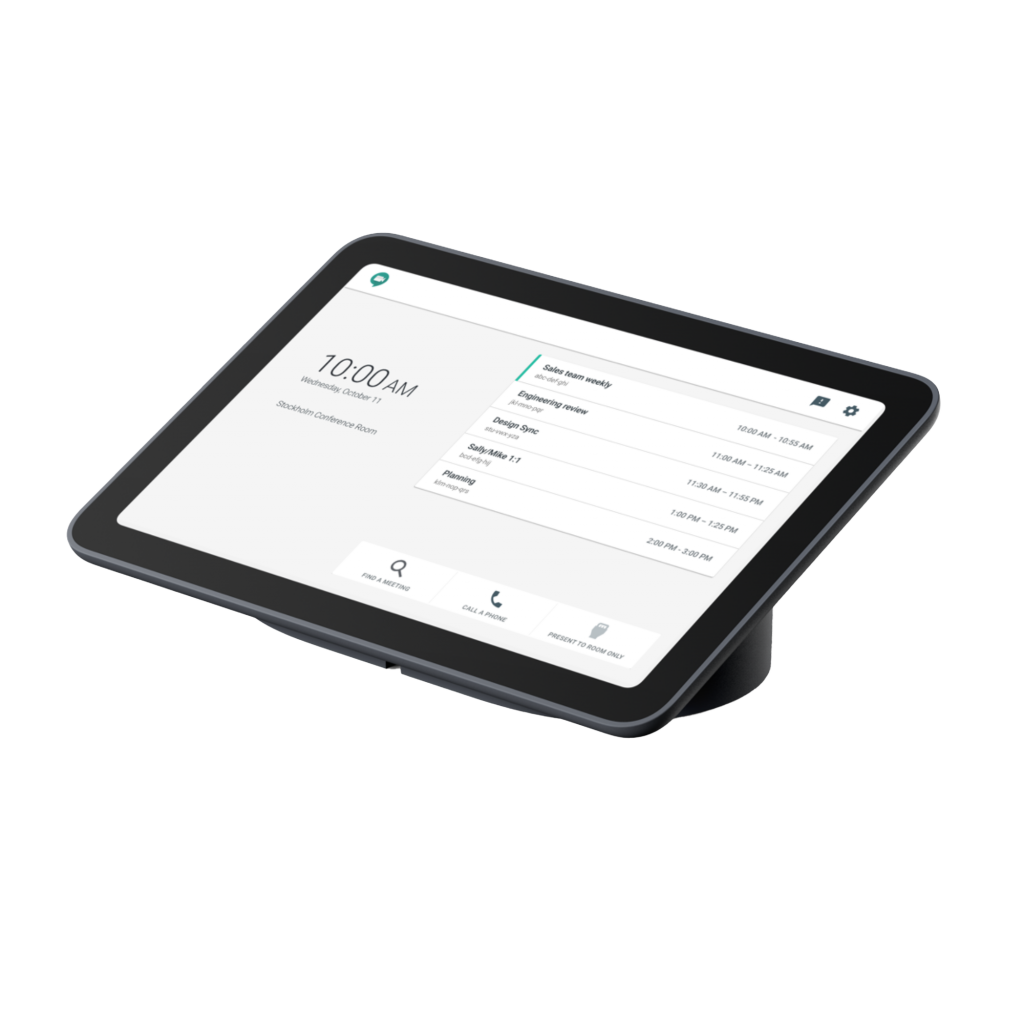

Touchless Touchability

List active meetings and allow for room and setting controls. Join touch-free by saying, “Hey Google, join the meeting”.

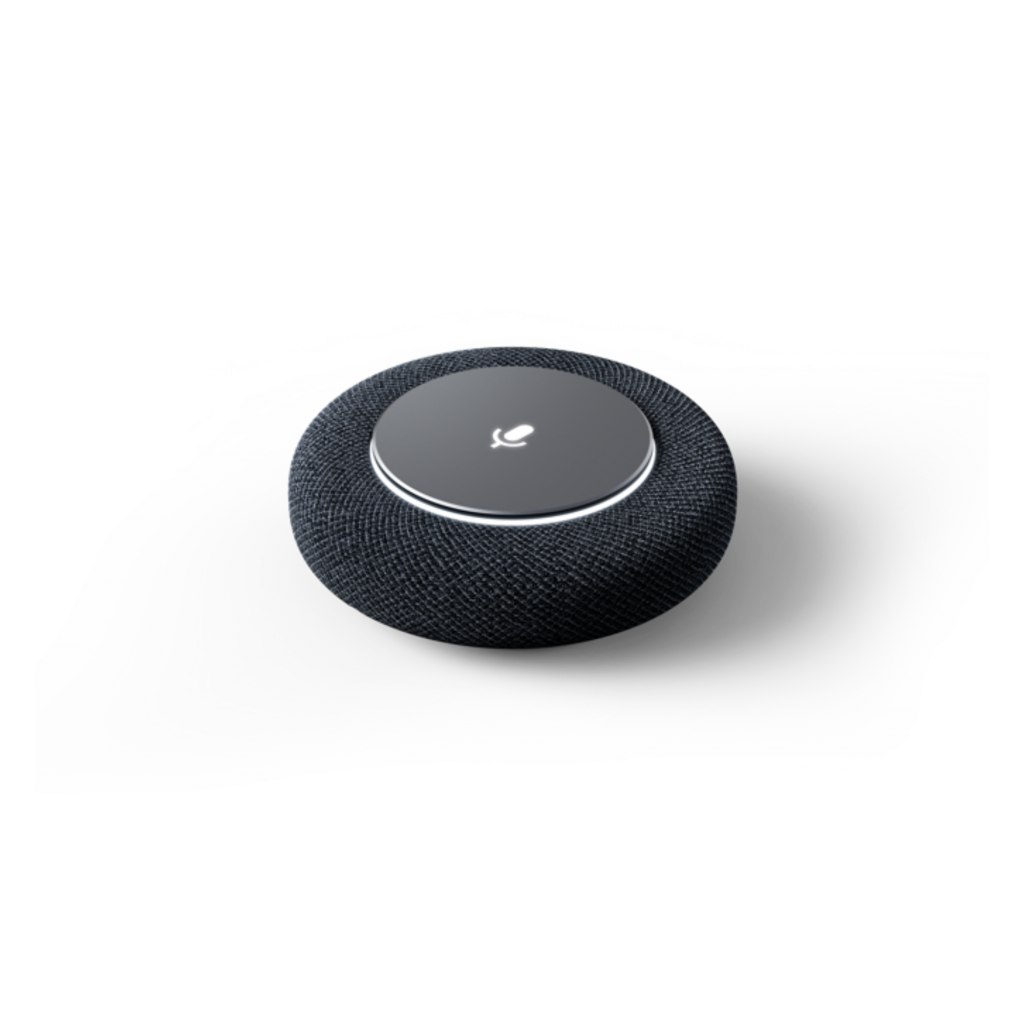

Effortless Expansion

Expand for larger rooms with just an ethernet cable and the tappable Mic Pod, which expands microphone reach.

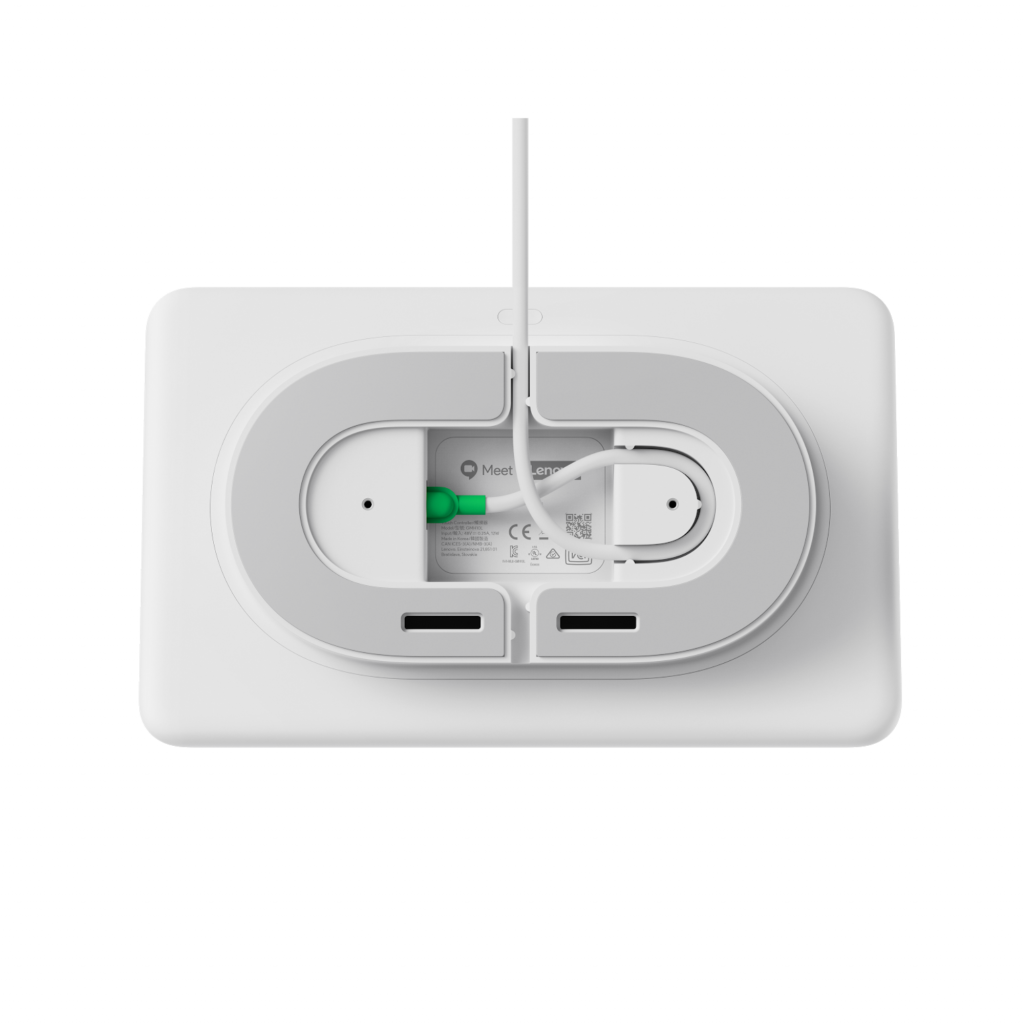

Ethernet Efficiency

System components are connected using color-coded ethernet cables to reduce clutter, cost, and installation time.

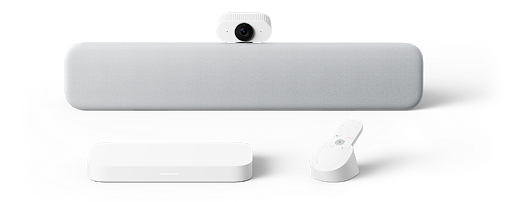

SOLUTION FOR EVERY ROOM

Outfit any space.

Choose from three purpose-built options, depending on your need: small, medium, or large rooms. The Google Meet Series One room kits from Lenovo are comprehensive and ready out of the box. Each kit includes a compute system with custom mounting options, plus a combination of up to six other components—which vary by room size. Components include a smart camera or smart camera XL, a remote control or touch controller, up to two mic pods, and a smart audio bar (plus an add-on audio bar in the large room kit).

TECHNICAL SPECIFICATIONS

Compute System

Mounting Options
- Wall mount
- Table stand
Processor
- 8^th Generation Intel^® Core™ i7-8550U Processor (1.80 GHz, up to 4.0 GHz with Turbo Boost, 4 Cores, 8 Threads, 8 MB Cache)
Memory
- 4GB RAM
Storage
- 128GB SSD
Wireless Data Network
- Intel^® 7265 802.11AC (2 x 2) 2.4GHz / 5GHz
- Bluetooth^® 4.2
- Ethernet (PoE)
Ports
- 2 x HDMI 1.4 output with CEC
- HDMI 1.4 input video port
- 5 x RJ45
- 3 x USB Type-A
- USB Type-C
- Headphone / mic combo
Dimensions (L x W x H)
- 135mm x 284mm x 29mm

Smart Camera

- 12MP 1/2.3″ CMOS sensor
- Up to 1080p @ 30 fps
- f/2.8 aperture
Optics
- Ultrawide-angle glass optics
- 120° horizontal field of view
Dimensions
- 84mm x 107mm x 42mm

Smart Audio Bar

Speaker
- 20W RMS power
- 80Hz-24kHz frequency response
Microphone
- 8-element, linear beamforming array
- 100Hz-24kHz pickup
Audio Performance
- AEC, ANC, and TrueVoice™ multi-channel noise cancellation
Connections
- USB-C with USB 2.0 UAC
- Stereo analog RCA output (for assistive listening devices)
- RJ45 (PoE)
- 2 x RJ45 (daisy chain output data and power)
Range
- Optimal pickup range of up to 4m
Dimensions
- 95mm x 705mm x 133mm
